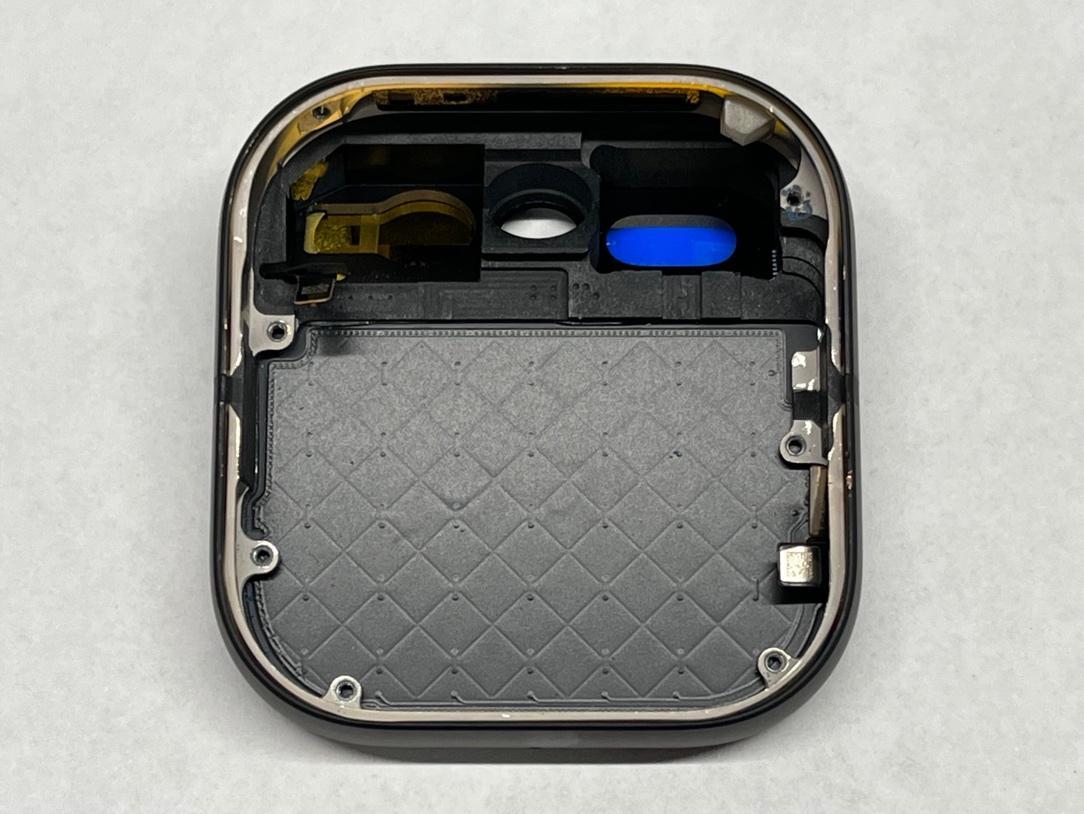

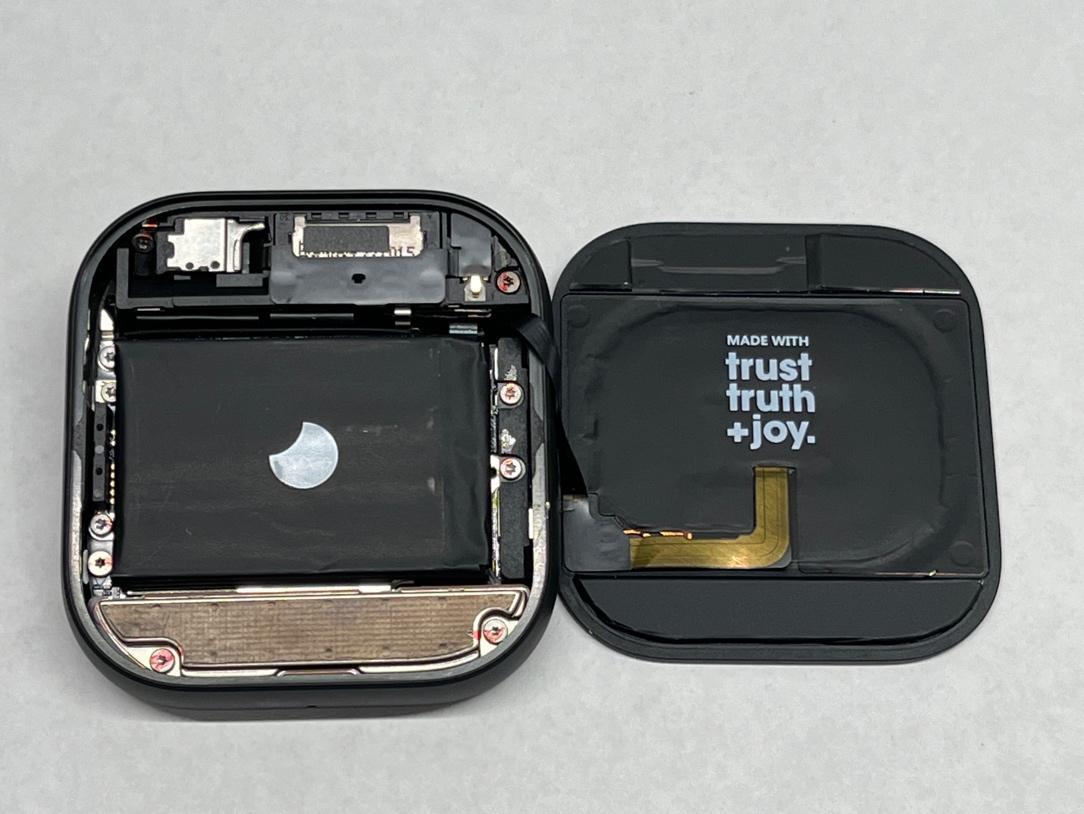

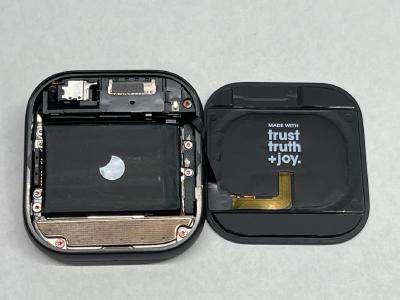

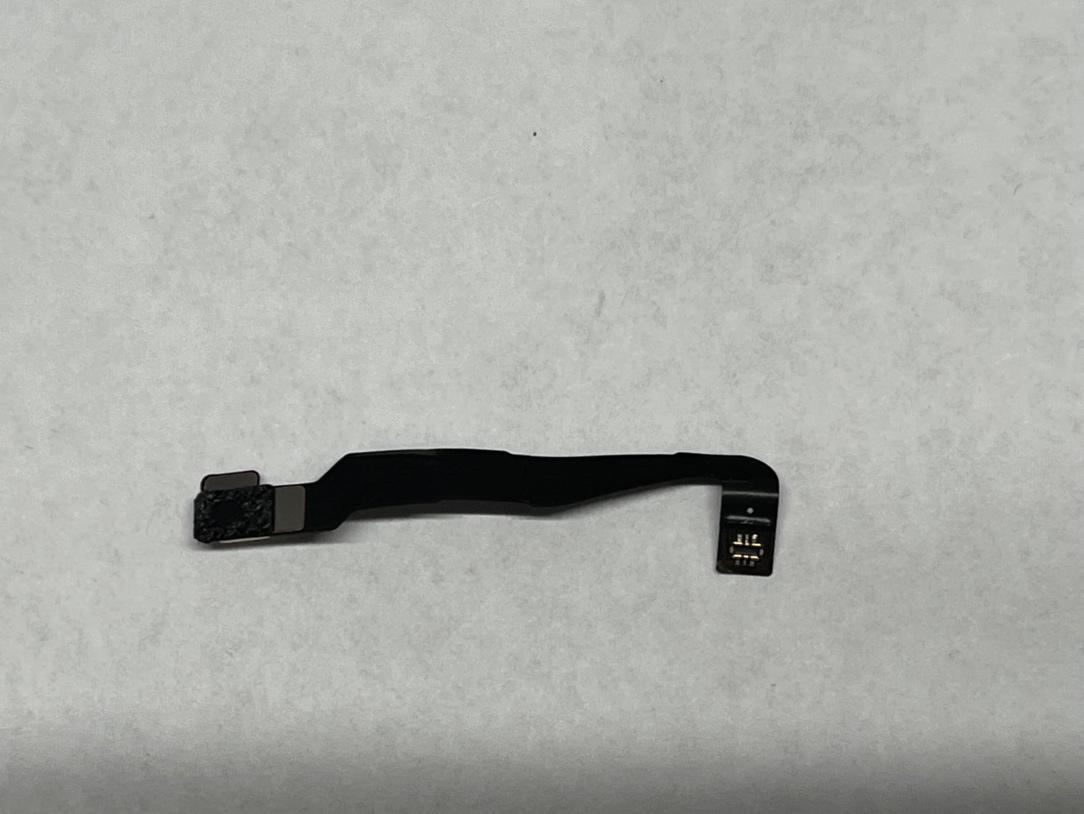

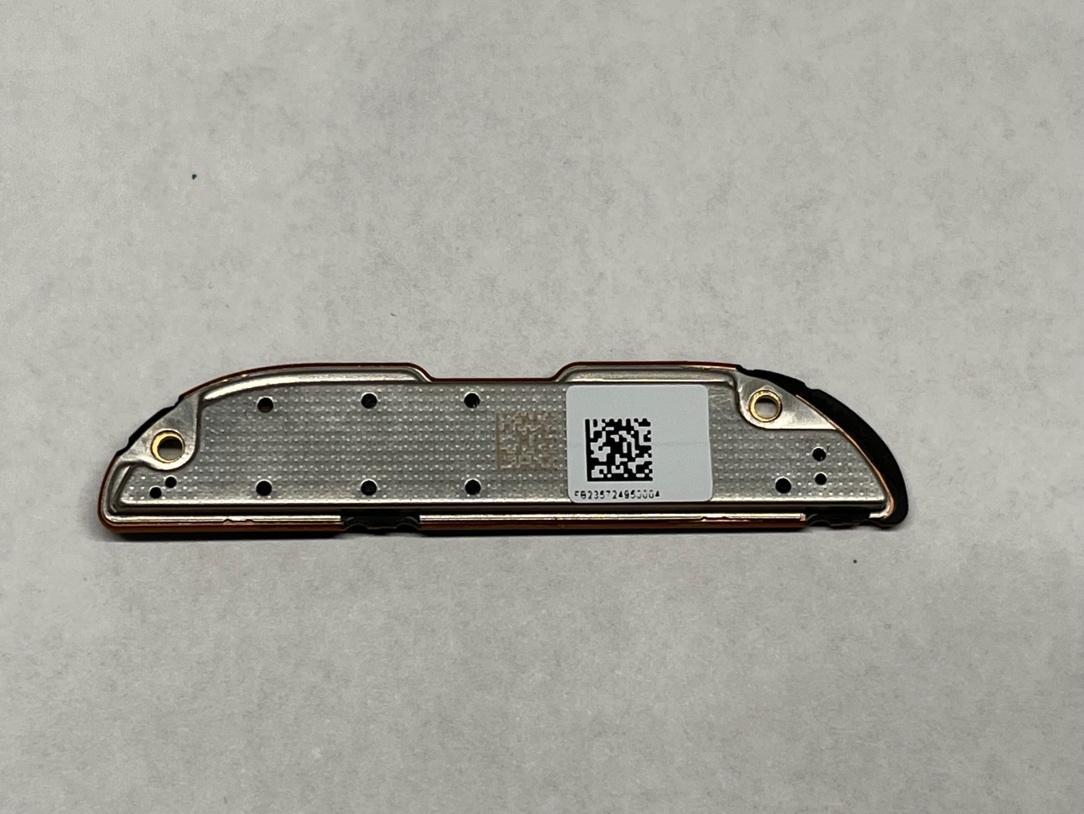

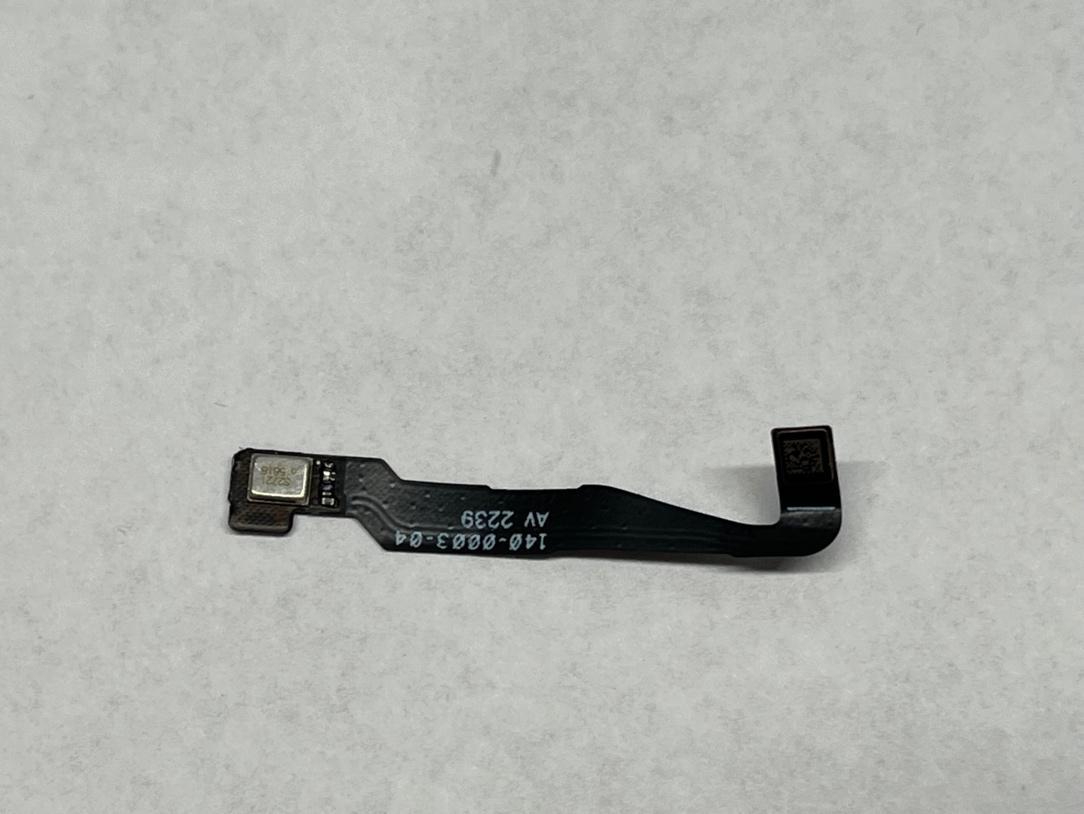

Every identified IC in the Humane Ai Pin, organized by board and side. Identifications sourced from iFixit’s Chip ID guide. For internal photos showing component placement, see Teardown.

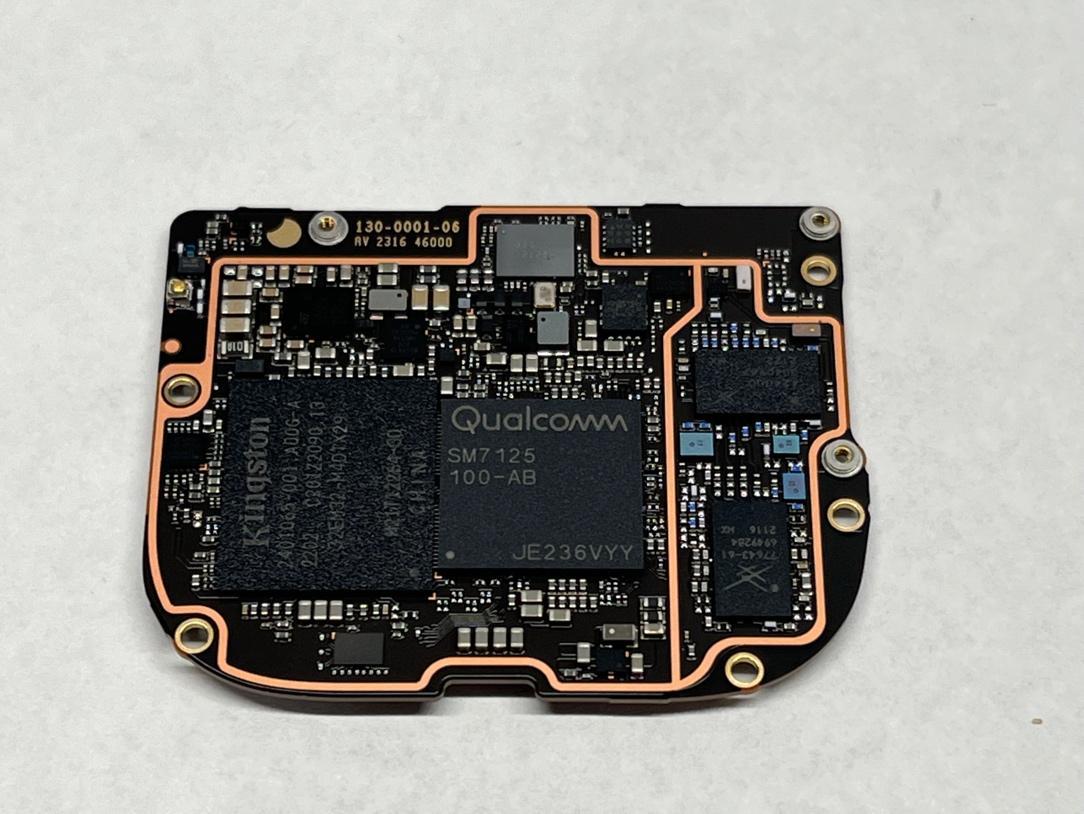

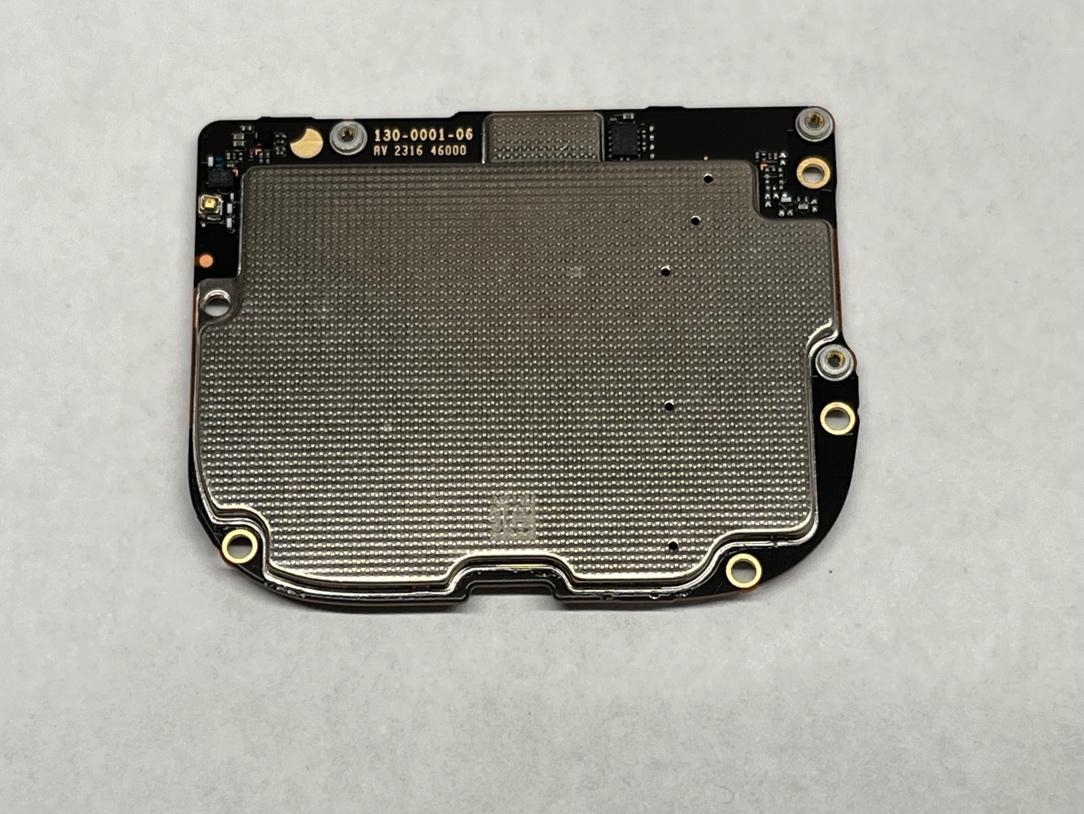

Main Board — Side 1

Processor & Memory

Part	Manufacturer	Function
SM7125-100-AB	Qualcomm	Snapdragon 720G SoC — 8nm, 2x A76 + 6x A55, Adreno 618, Spectra 350L, X15 LTE, 5th Gen AI Engine
32EM32-M4DTX29	Kingston	32GB eMMC + 4GB LPDDR4X eMCP

Power

Part	Manufacturer	Function

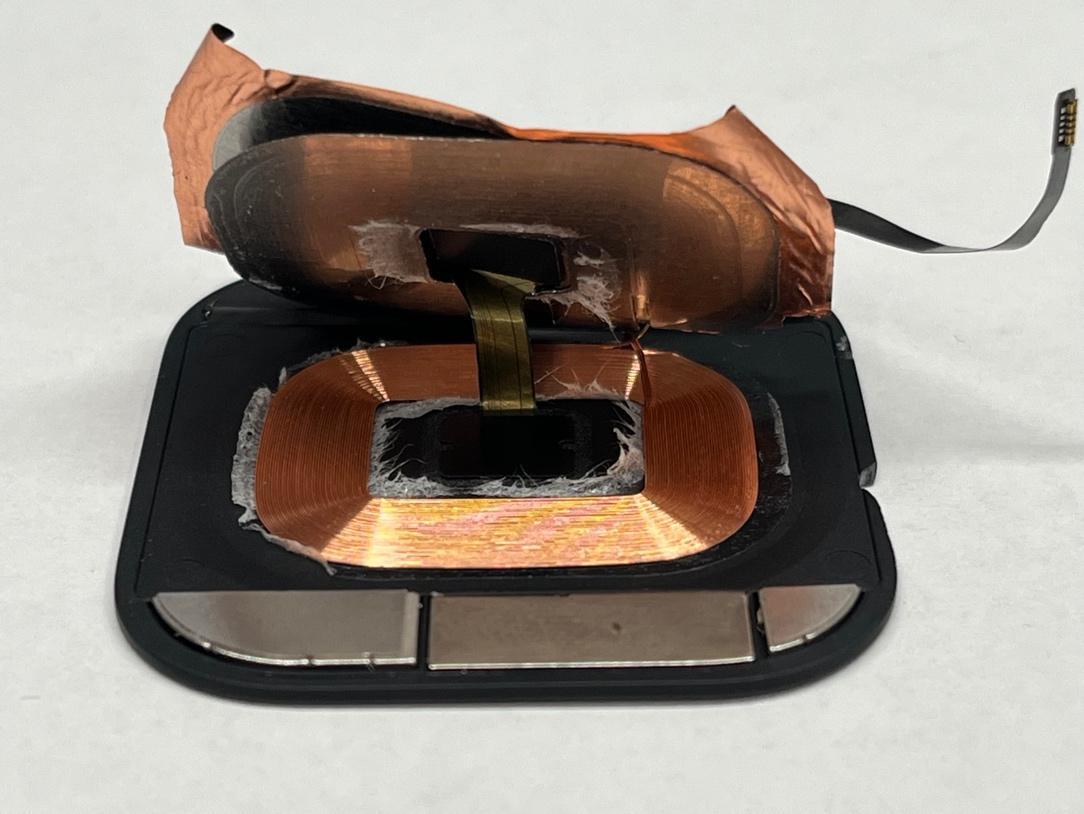

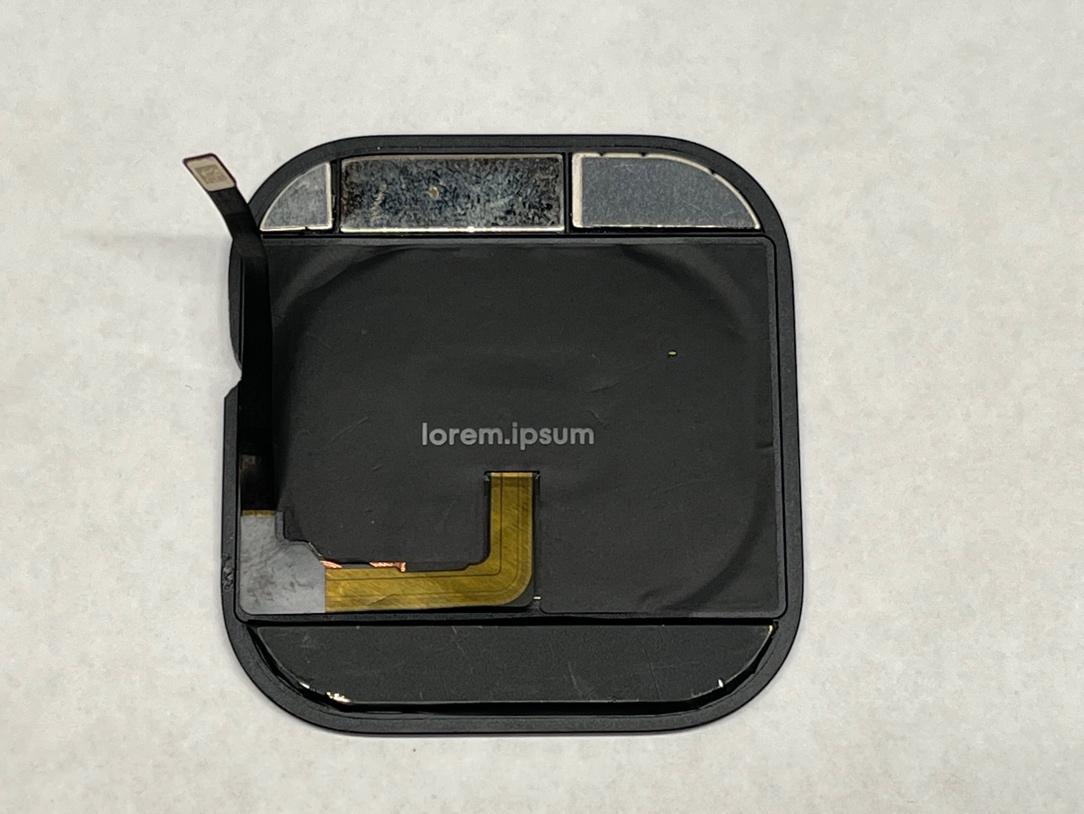

STWLC86	STMicroelectronics	Wireless power receiver (Qi-compatible)
MAX77839C	Analog Devices	Buck-boost converter
TPS22930A	Texas Instruments	Load switch (5.5V, 4A, 18mΩ)

Security & Control

Part	Manufacturer	Function
ST33K	STMicroelectronics	Secure element
CY8C4045FNI-S412T	Infineon	PSoC 4000S MCU (Cortex-M0) — likely touchpad controller

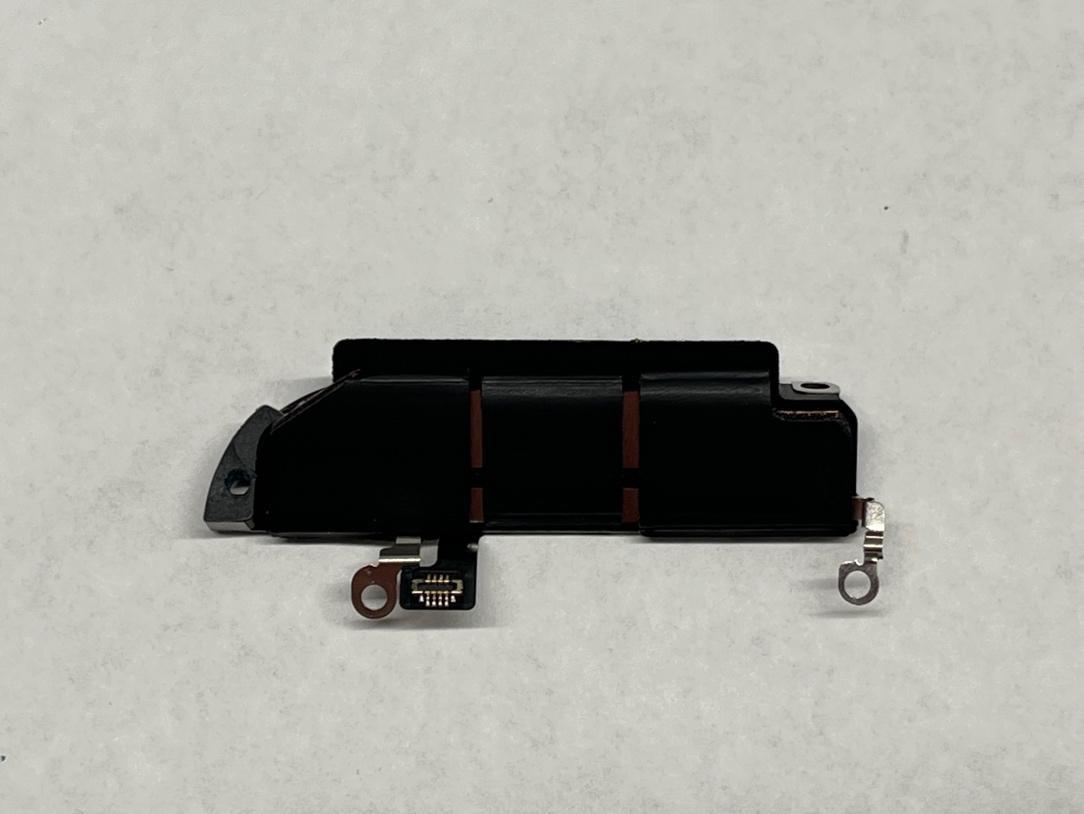

Audio

Part	Manufacturer	Function
WSA8810-0VV	Qualcomm	Mono Class-D speaker amplifier (Aqstic)

LED Driver

Part	Manufacturer	Function
LED1202	STMicroelectronics	12-channel LED driver — drives Trust Light (3 RGB) + Beacon (1 RGB)

Sensors

Part	Manufacturer	Function
—	STMicroelectronics	6-axis accelerometer + gyroscope (IMU)
MMC5633NJL	MEMSIC	3-axis magnetometer (±30 Gauss, I2C/SPI)

RF Front-End

Part	Manufacturer	Function
SKYA24000	Skyworks	Front-end module
SKY77643-61	Skyworks	Multimode multiband PA module

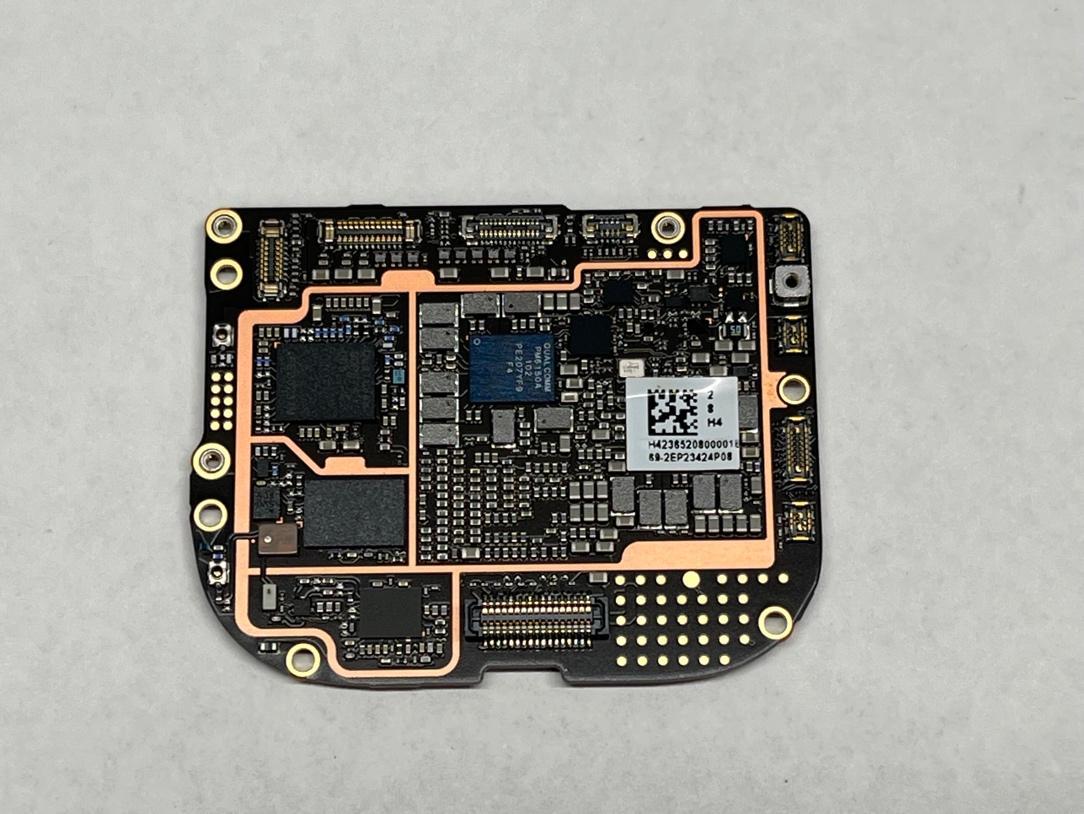

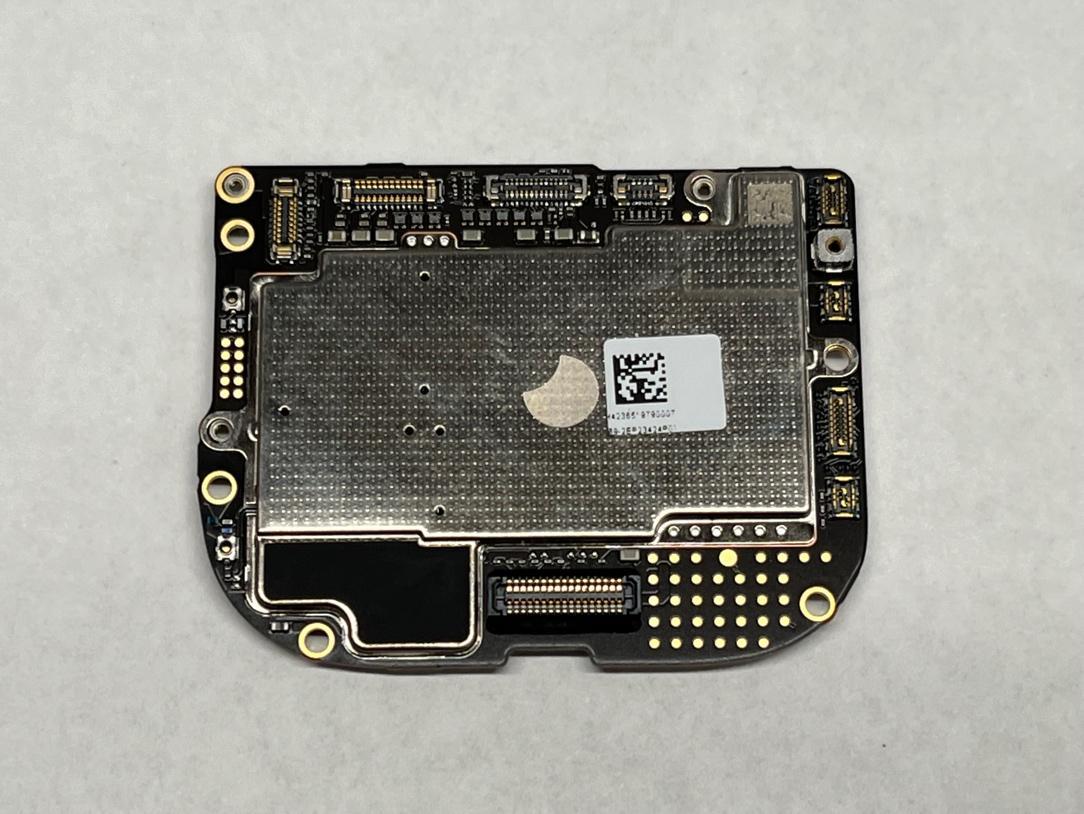

Main Board — Side 2

Power & Charging

Part	Manufacturer	Function
PM6250-102	Qualcomm	Primary PMIC (Snapdragon 720G companion)
PM6150A-102	Qualcomm	Secondary PMIC
BQ25175	Texas Instruments	Linear battery charger (50-500mA)

Microcontroller

Part	Manufacturer	Function
STM32F410TB	STMicroelectronics	Cortex-M4 MCU (100MHz, 128KB Flash) — sensor hub or peripheral management

Connectivity

Part	Manufacturer	Function
WCN3988-000	Qualcomm	Wi-Fi 802.11ac (2x2 MIMO) + Bluetooth 5.0 + FM
SDR675-005	Qualcomm	RF transceiver (X15 LTE companion)
SKY53735-61	Skyworks	Diversity receive module (LNA + filter)
SKY13351-378LF	Skyworks	GaAs SPDT RF switch (0.1-6.0GHz)

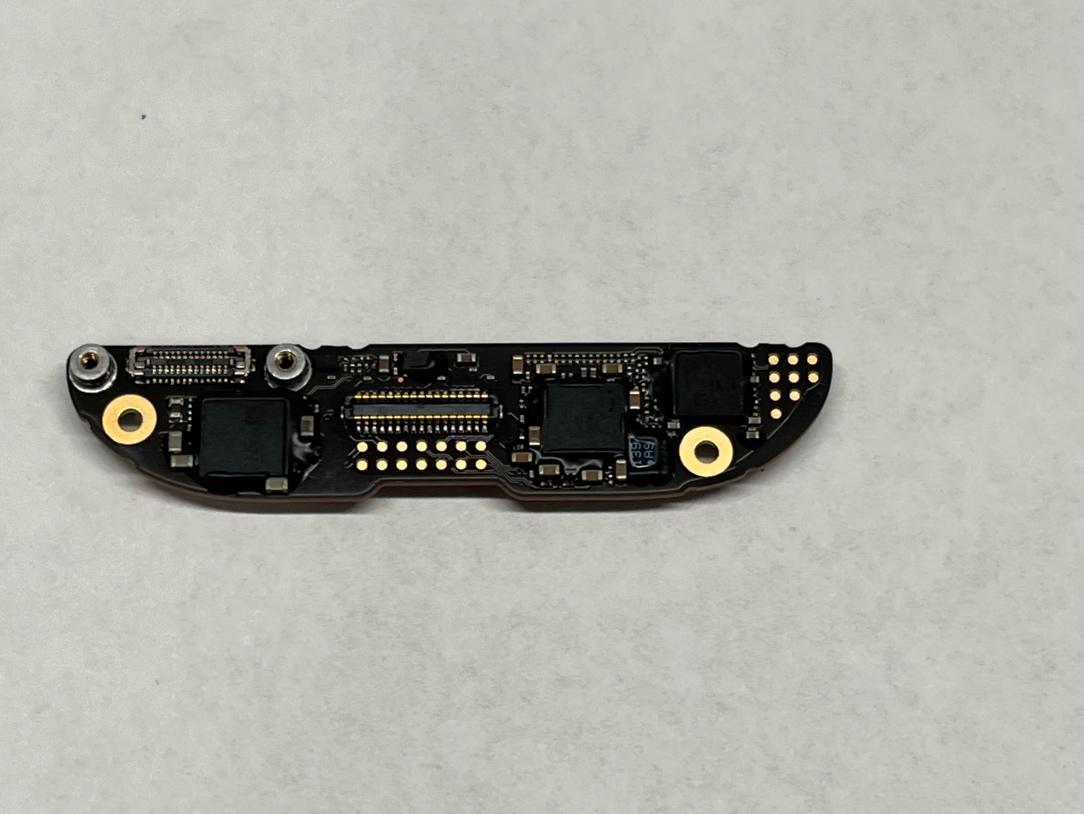

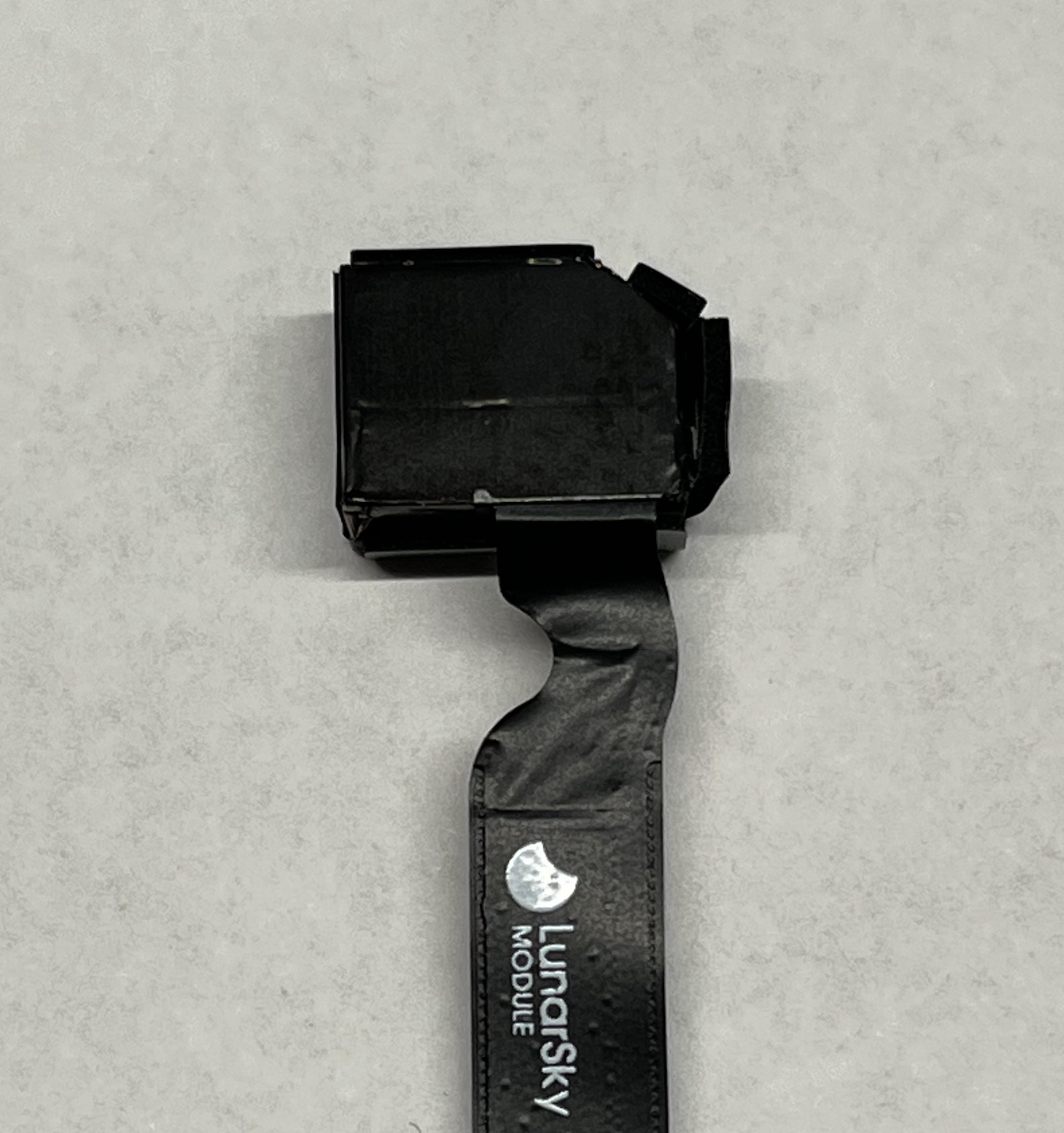

Laser Projector Board — Side 1

The projector has its own dedicated PCB, connected to the main board via flex cable.

Motor Control & Power

Part	Manufacturer	Function
—	STMicroelectronics	MEMS mirror driver (drives Castor + Pollux mirrors)
MP3438GTL	Monolithic Power Systems	Boost converter (2.5-22V in, up to 36V out) — MEMS drive voltage
INA280A1QDCKRQ1	Texas Instruments	Current sense amplifier (automotive-grade) — laser diode monitoring

Laser Projector Board — Side 2

Digital Control

Part	Manufacturer	Function
LIFCL-17-8UWG72C	Lattice Semiconductor	CrossLink-NX FPGA (17K LUTs, 72-ball csBGA) — mirror/laser timing coordination
STM32F412RG	STMicroelectronics	Cortex-M4 MCU (100MHz, 1MB Flash, 256KB RAM) — projector controller

Laser Driver

Part	Manufacturer	Function
STLDDx	STMicroelectronics	Laser diode driver — 498nm single-diode, 10ns-20µs variable pulse

MEMS Mirrors

Mirror	Shape	Function
Castor	Circular	Resonant — sweeps horizontal scanlines at fixed frequency
Pollux	Rectangular	Quasi-static — positions each scanline vertically

Architecture

┌─────────────────────────────────────────────────┐
│ MAIN BOARD                                      │
│                                                 │
│  Snapdragon 720G ─── Kingston eMCP              │
│  (SoC)               (4GB + 32GB)               │

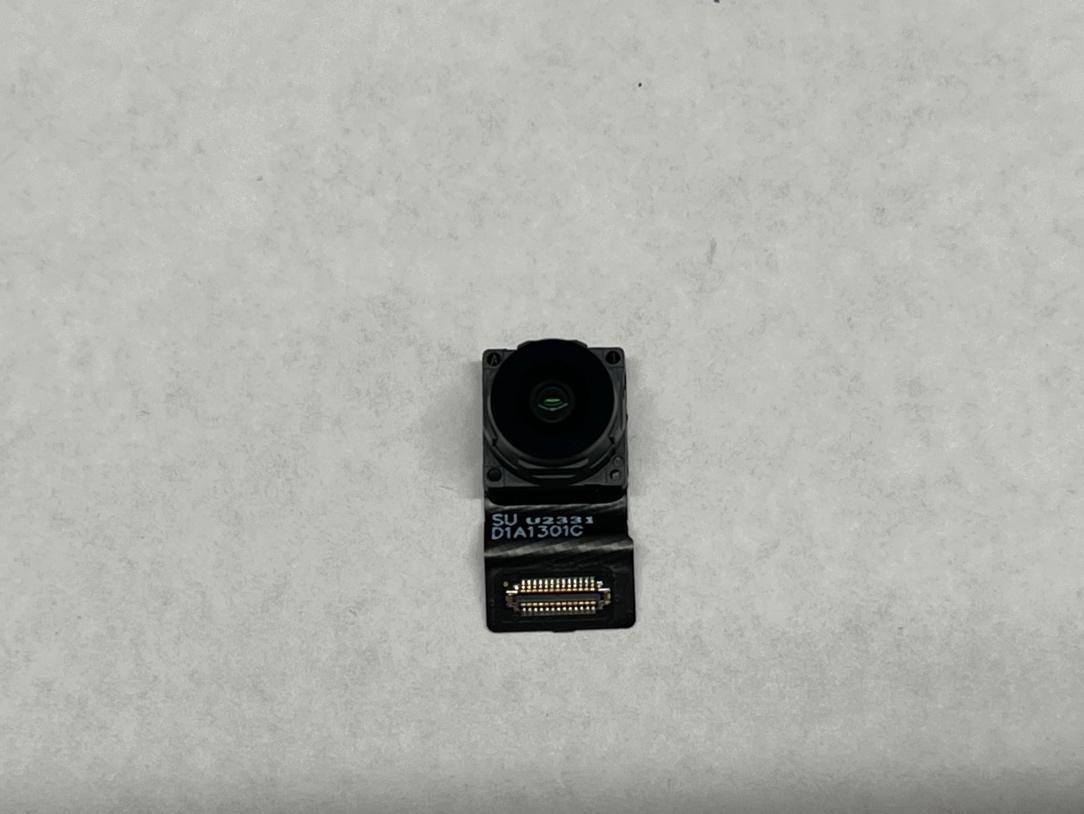

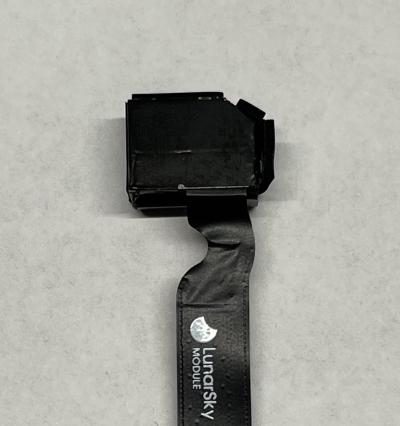

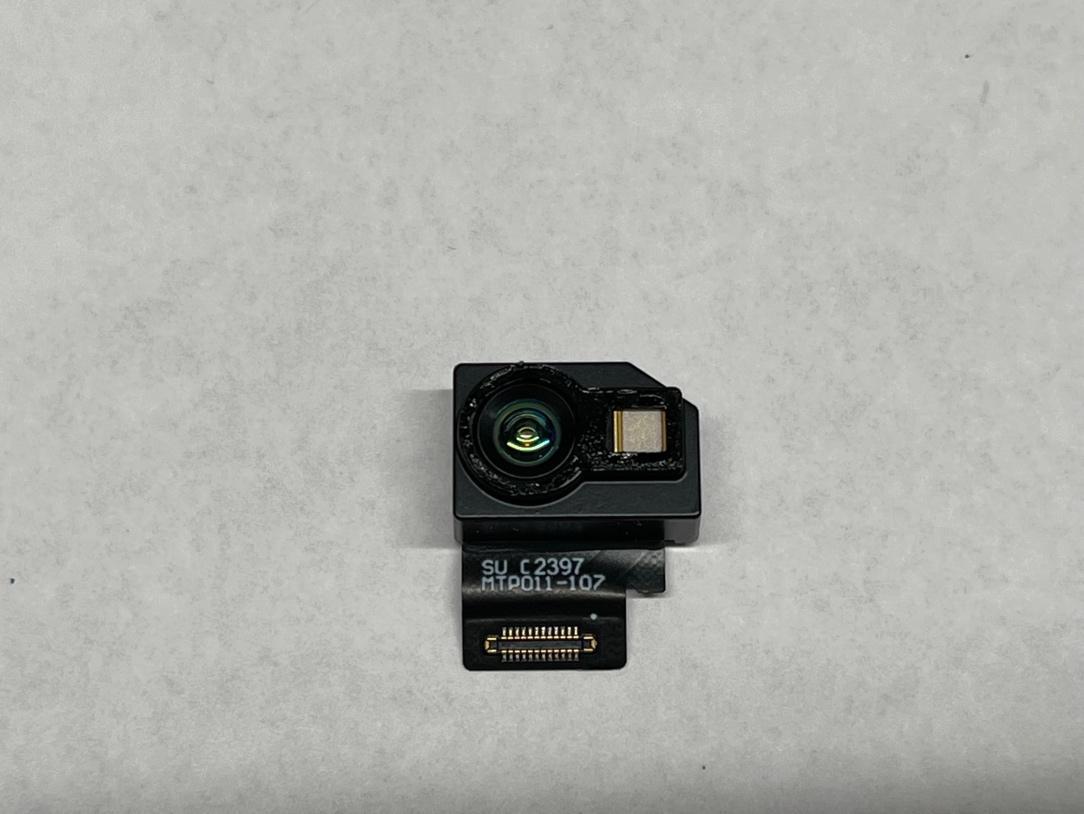

│    ├── Spectra 350L ISP ── 13MP Camera           │
│    ├── X15 LTE Modem                             │
│    │     ├── SDR675 Transceiver                  │
│    │     ├── SKY77643 PA                         │
│    │     └── SKY53735 / SKY13351 / SKYA24000     │
│    └── AI Engine                                │
│                                                 │
│  WCN3988 (Wi-Fi ac + BT 5.0)                   │
│  PM6250 + PM6150A (PMICs)                       │

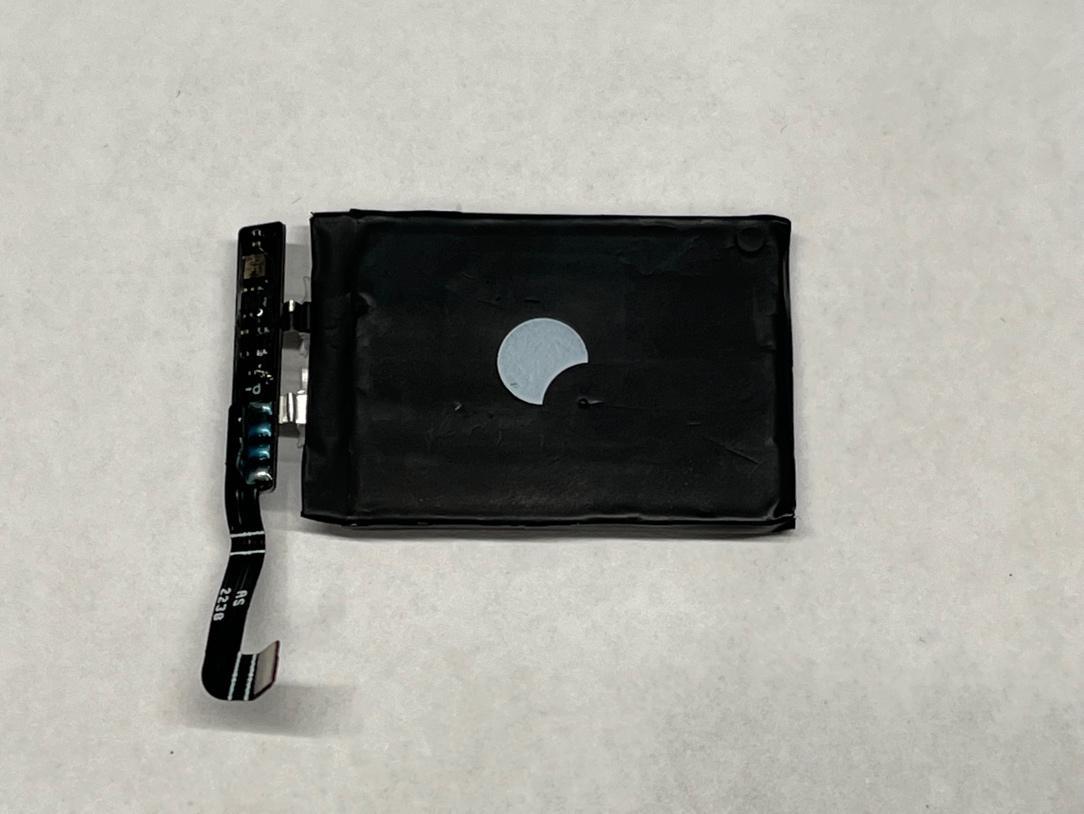

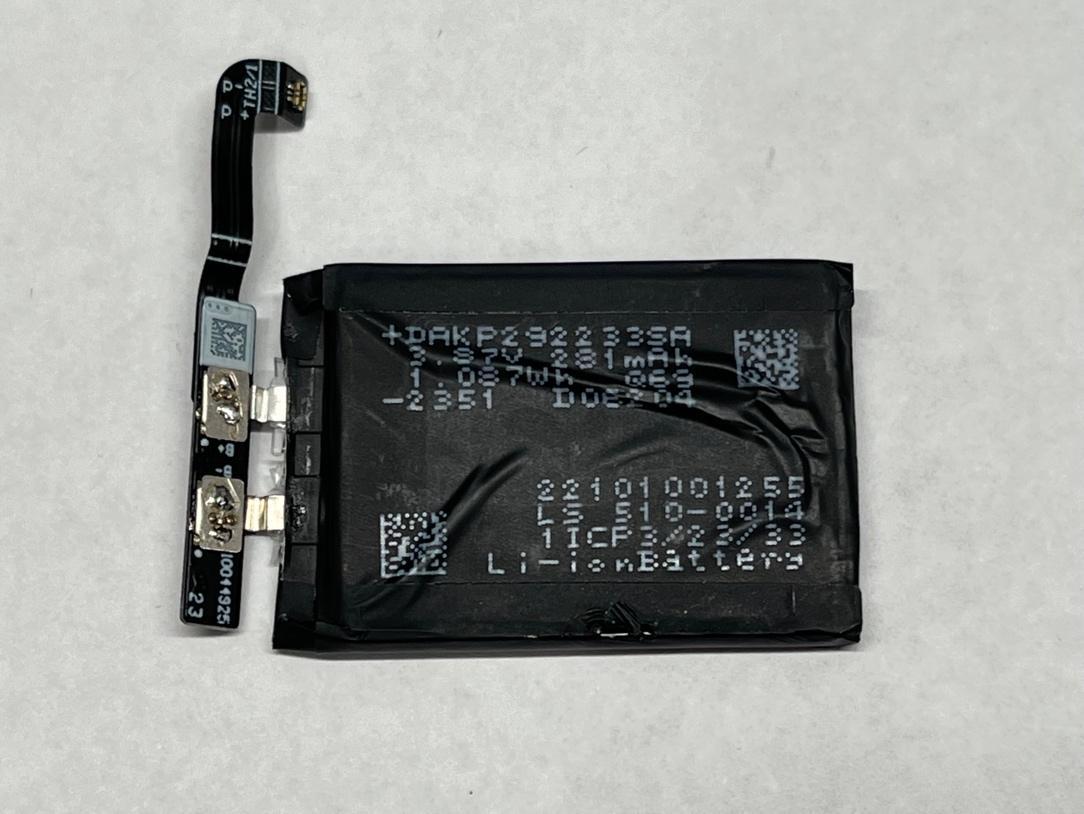

│  STWLC86 (Wireless Power Rx) ── Battery         │
│  BQ25175 (Charger)                              │
│  MAX77839C (Buck-Boost)                         │
│  STM32F410TB (Sensor MCU)                       │
│  CY8C4045FNI (Touchpad MCU)                     │
│  ST33K (Secure Element)                         │
│  LED1202 ── Trust Light + Beacon                │

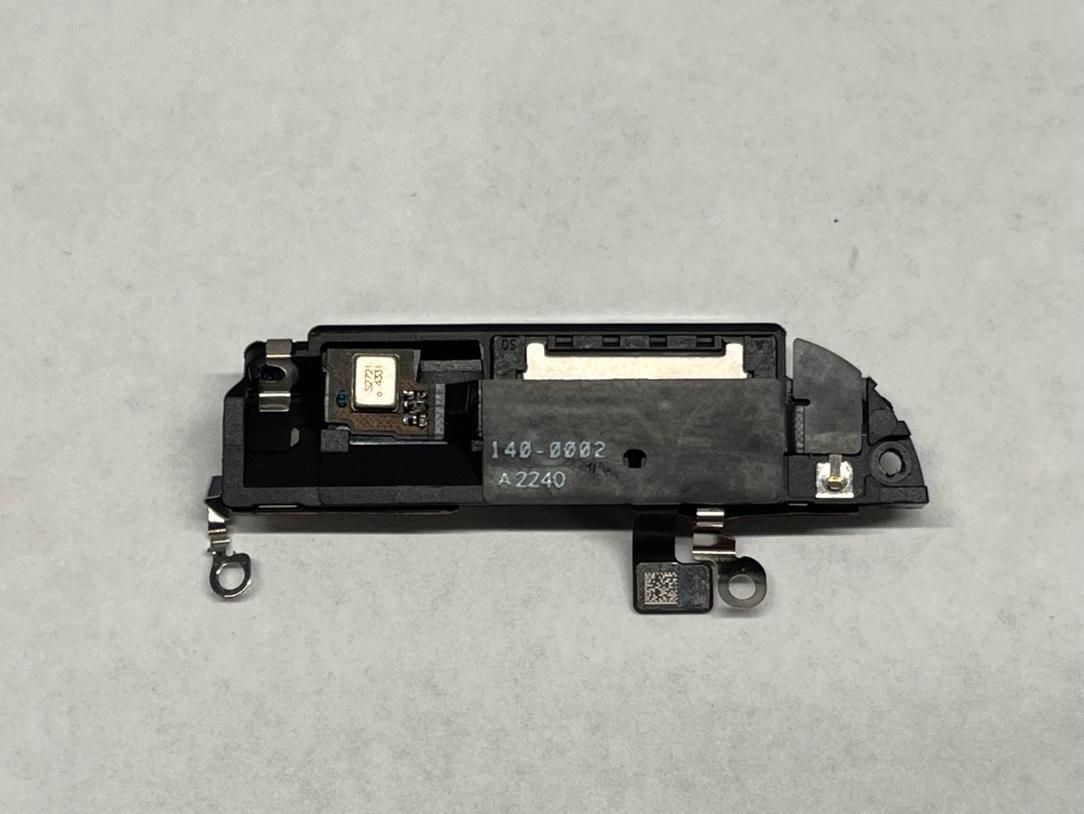

│  WSA8810 ── Speaker                             │

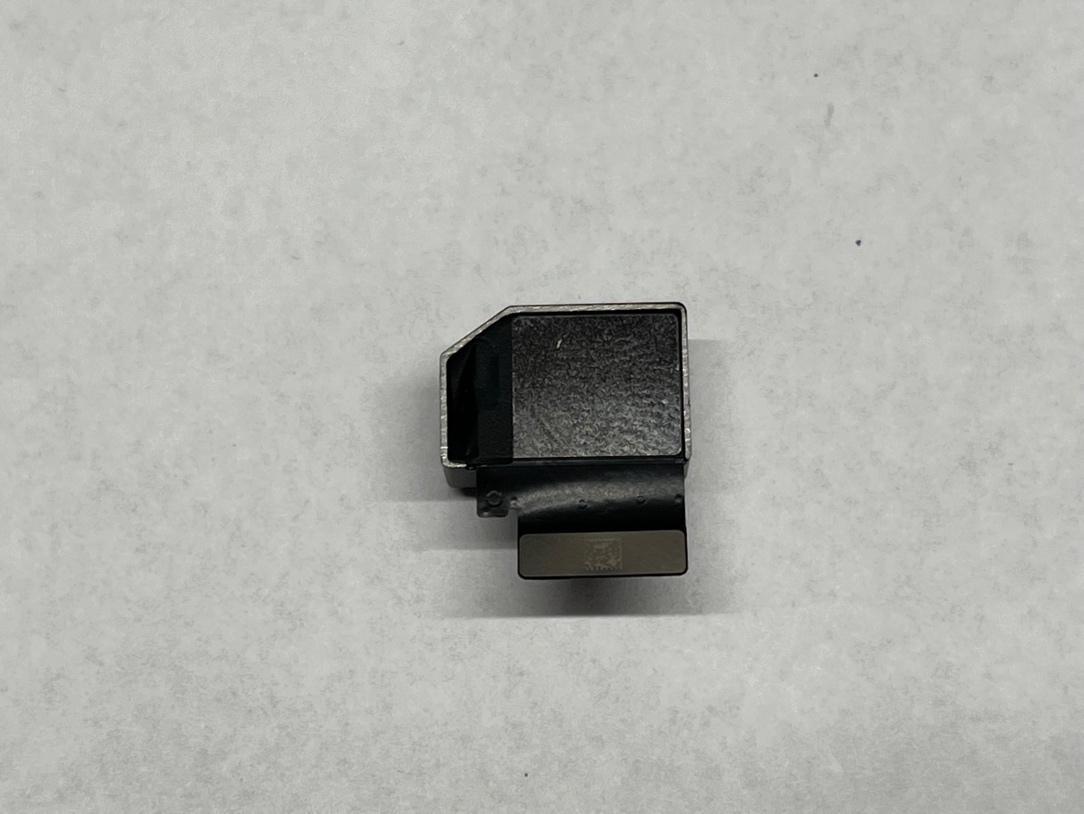

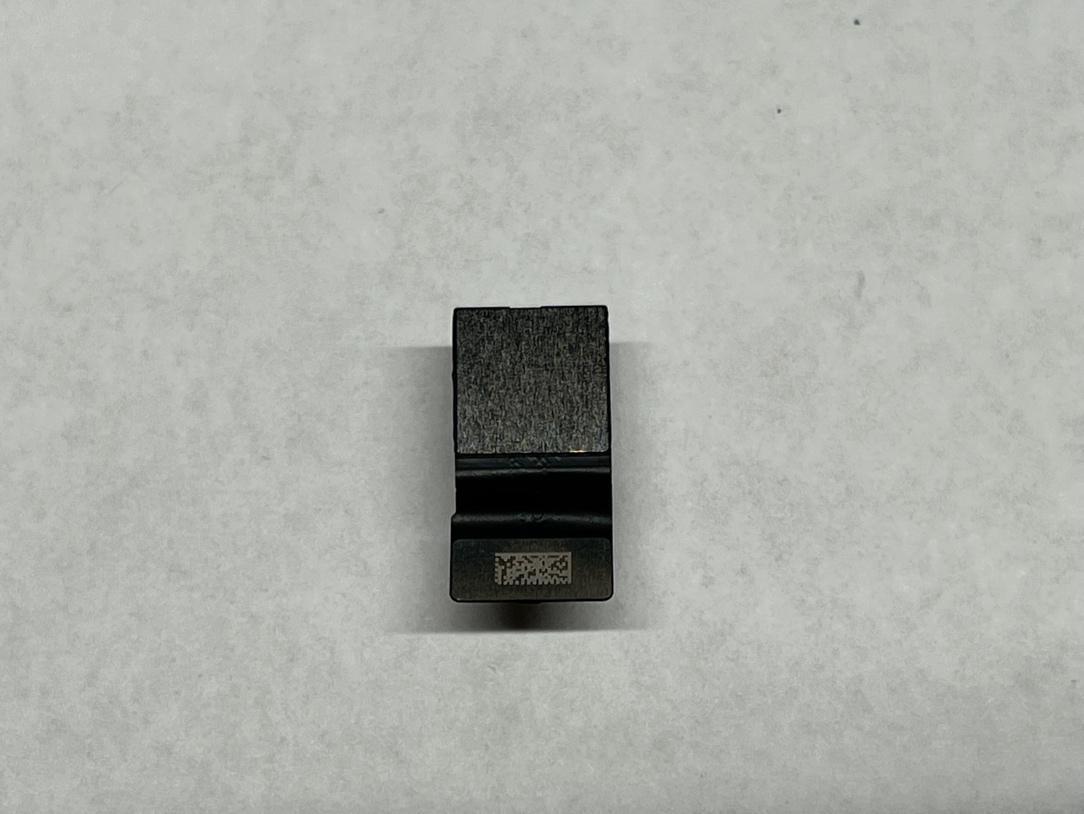

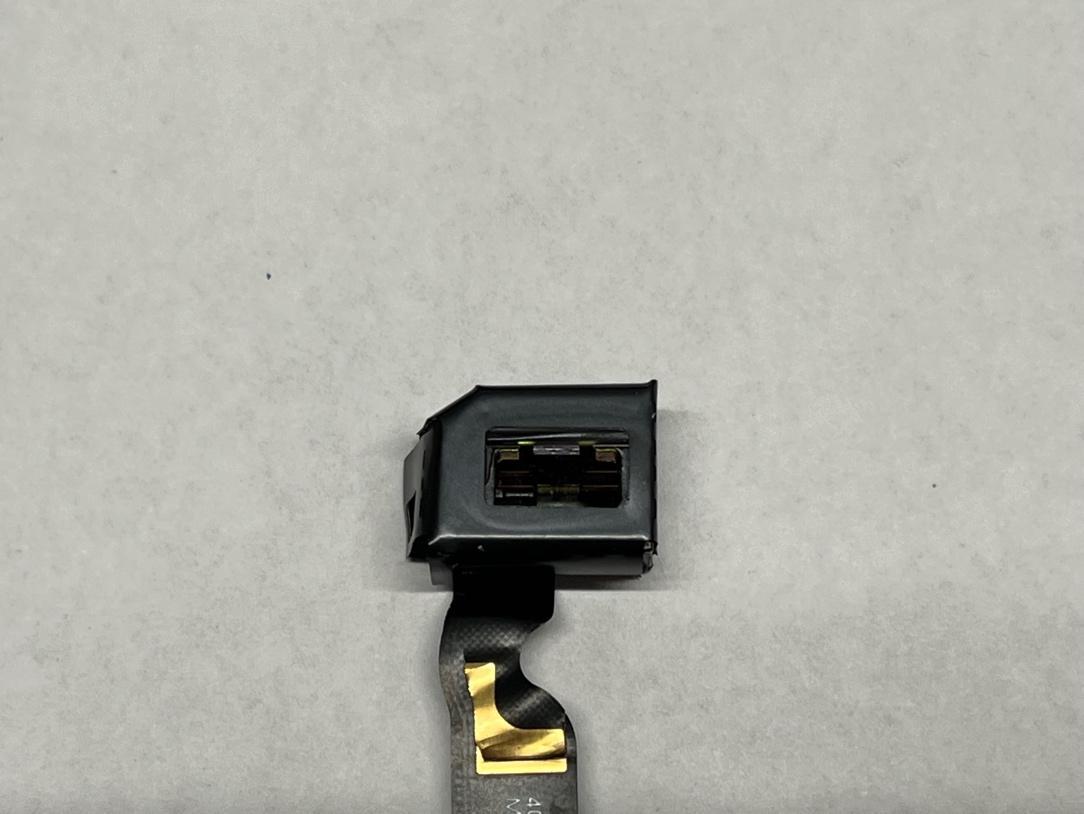

│  IMU + MMC5633NJL + ALS + iToF                  │
│                                                 │
├──────────── flex cable ─────────────────────────┤
│                                                 │
│ PROJECTOR BOARD                                 │
│  LIFCL-17 FPGA ── STM32F412RG MCU              │
│  STLDDx Driver ── 498nm Laser Diode             │
│  ST MEMS Driver ── Castor (H) + Pollux (V)     │
│  MP3438GTL (Boost) + INA280A1 (Current Sense)  │
└─────────────────────────────────────────────────┘
